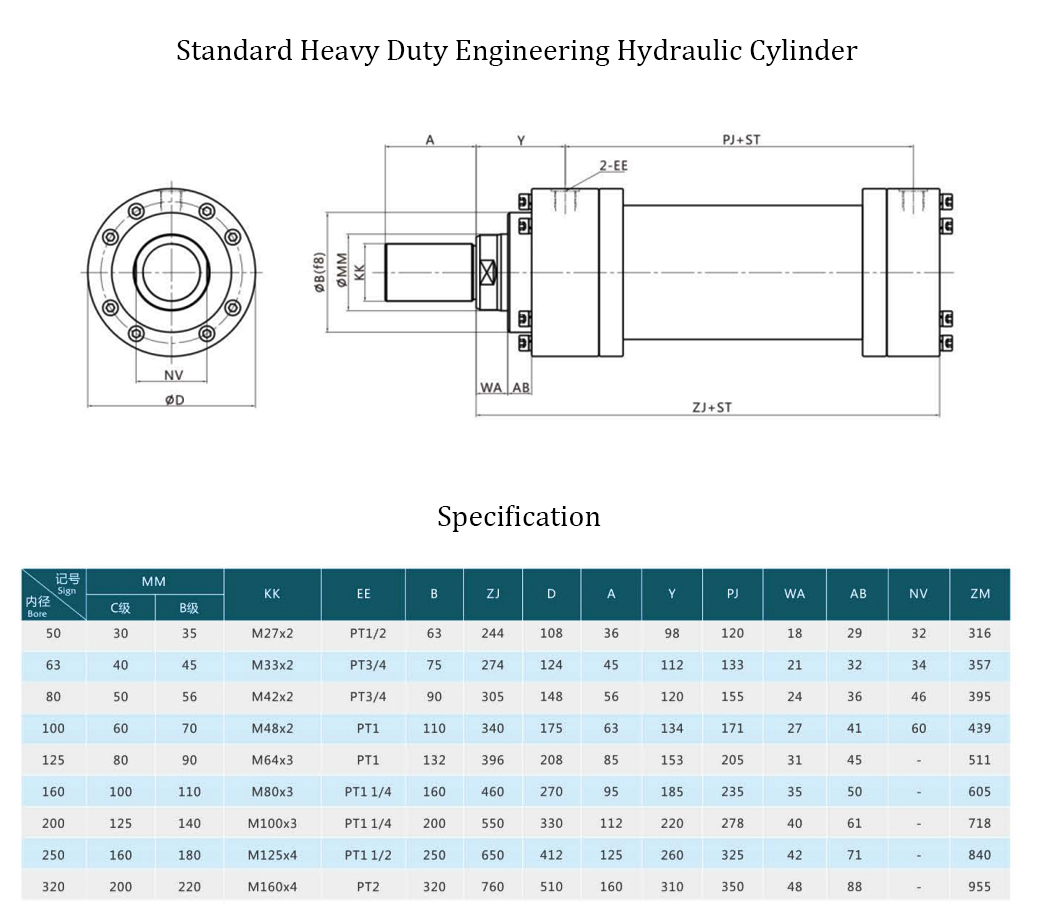

Heavy Duty Engineering Hydraulic Cylinder

Heavy Duty Engineering Hydraulic Cylinders are designed to deliver exceptional force, reliability, and durability for heavy engineering and industrial applications. Built with a robust cylinder structure and high-strength components, these cylinders convert hydraulic fluid pressure into powerful and controlled linear motion. They are engineered to operate under high loads, harsh environments, and continuous duty conditions, making them suitable for demanding engineering machinery and large-scale industrial systems.

Key Features:
The product design complies with lSO6022 and DIN24333 specifications
Maximum working pressure 250Kgf/cm²

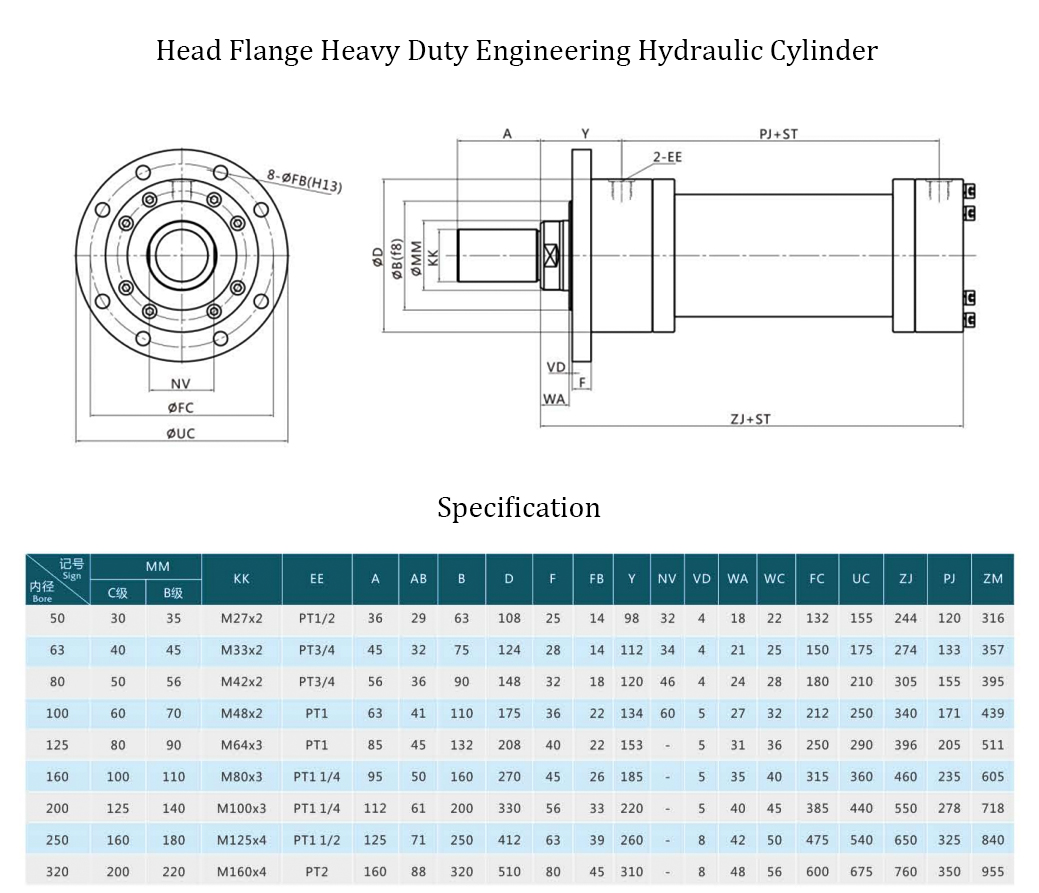

Structure：the Front and back cover are connected to the flange plate by steel screws, flanges are screwed on cylinder body, which are tightly combined, easy to disassemble and repair
Designed for high operating pressures and long service life, heavy-duty construction for high load and severe working conditions
Applications:
Engineering machinery, construction equipment, mining machinery, metallurgical equipment, heavy presses, material handling systems, and other heavy-duty industrial applications requiring powerful hydraulic linear actuation.
Customized service:
Can be customized according to provided drawings
